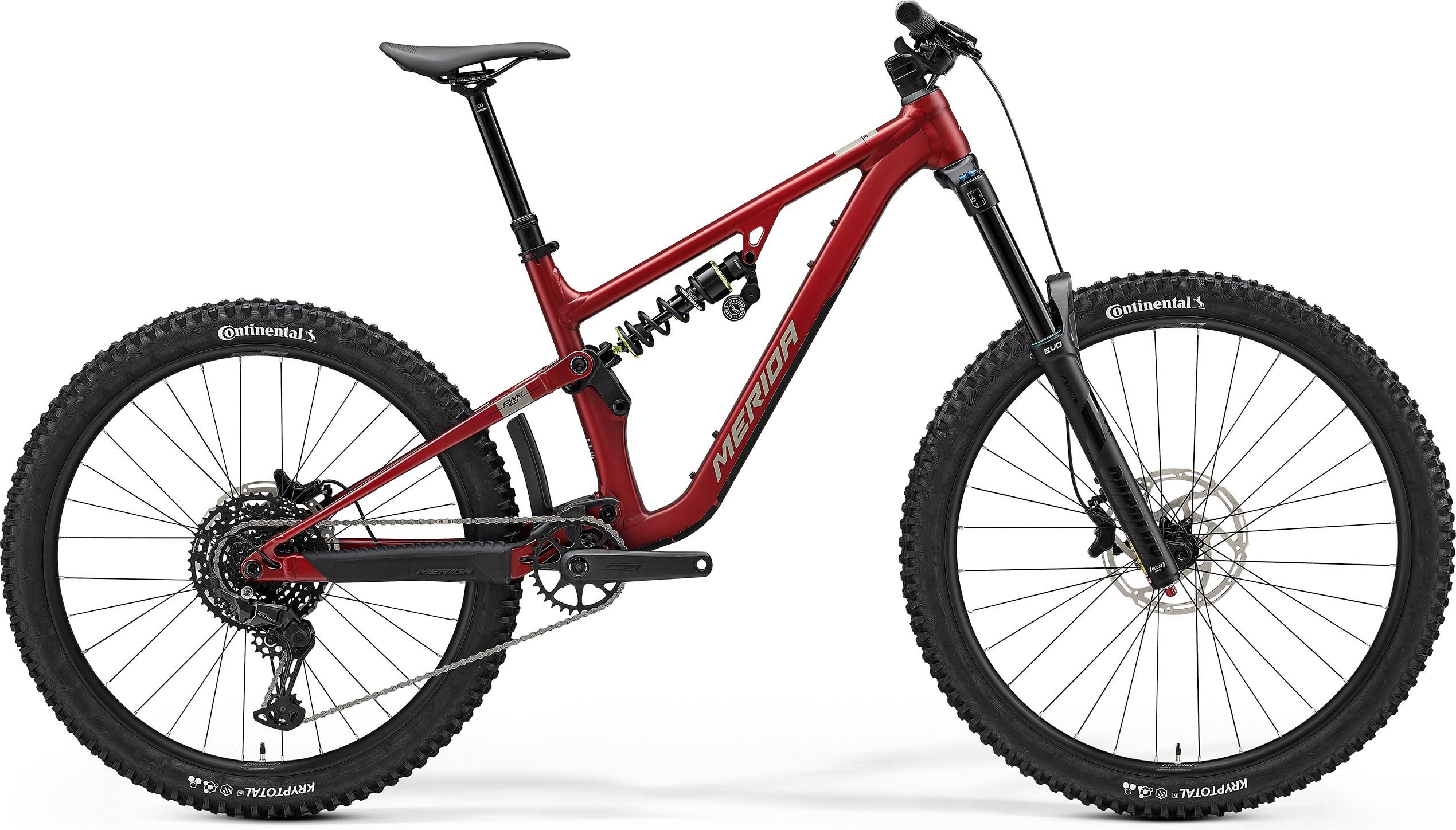

Wallet friendly ripper, built for bike park fun and rated for category 5 use. 180mm up front and 171mm out back with 4 pot stopping power.
The hardcore cousin of the One-Sixty 6000 MBUKs Enduro Bike of the year. Of the One-Sixty 6000 they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.”Totally planted, thoroughly sorted and outrageously capable. Meridas design team have taken that prize winning pedigree and turned up the fun to 11.
Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear. The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that wont last the course.
The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty. The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package.
Highlights:
Frame |
Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
Shock |
DVO Jade X D3; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450 |
Fork |
SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6" |
Gears | 10 |
Shifters |
Shimano CUES U6000 |
Rear Derailleur | Shimano CUES U6000; GS |
Bottom Bracket | Samox BSA 24mm EB2401 |
Chain |
KMC xGlide |
Chainset | Merida Expert TR II; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 165mm (all sizes) |
Cassette | Shimano LG300; 11-48 teeth; 10 speed |
Brake Lever |
Tektro Gemini HD-M535 |
Front Brake | Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor |
Rear Brake | Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor |
Grip |
Merida Comp EC |
Handlebar | Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes) |
Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
Pedal | Not provided |
Saddle |
Merida Comp SL; V-mount - made with 25% recycled material |
Seatpost | Merida Expert TR II; 34.9mm diameter; 0mm layback; XShort/Short: 150 mm seat post travel - Mid: 170 mm seat post travel - Long: 200 mm seat post travel - XLong: 230 mm seat post travel |
Wheel Size | 29"/27.5" |
Rims | Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
Spokes | Double Butted Black stainless |
Front Hub | Shimano TC500-B; 110 x 15mm; 32 spoke; Centerlock |
Rear Hub | Shimano TC500-HM-B; 148 x 12mm; 32 spoke; Centerlock |
Front Tyre | Continental Kryptotal-F; 29" x 2.4"; Kevlar bead; TR; Enduro casing; Soft Compound |
Rear Tyre | Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead; TR; Enduro Casing; Soft Compound |
Please be aware that the images and description above are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. Cycle Centre Congleton Limited T/A CycleStore only resell items from third parties and do not design or manufacture any products.
