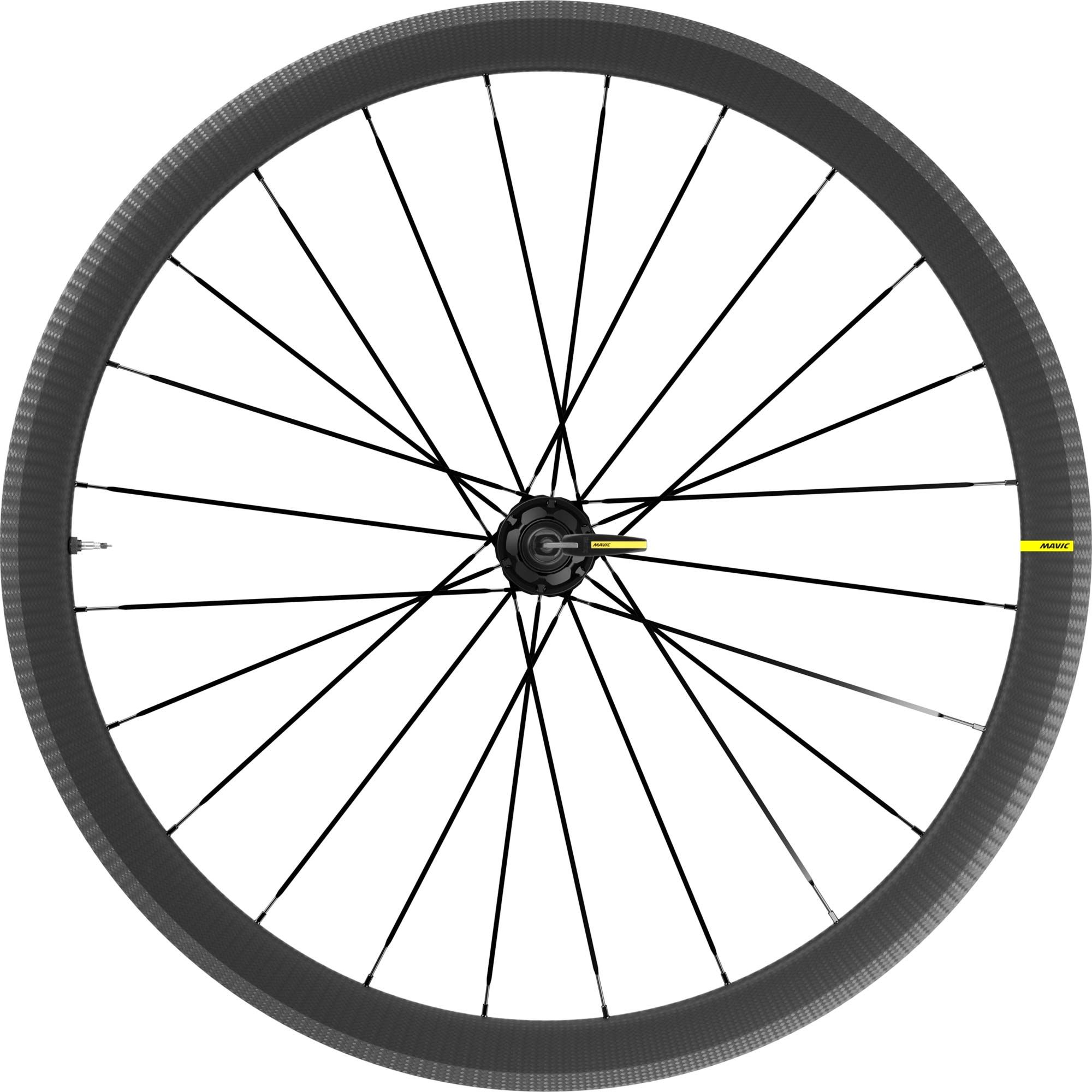

Mavic Cosmic Sl 40 Rim Brake Rear Wheel

Product ID: 90777_

Aero efficiency quick acceleration and the improved ride quality of UST Tubeless. You get it all with this carbon road wheel featuring easier to use Road Tubeless technology and a lighter weight.

This versatile carbon road wheel is ideal for riders seeking the perfect balance between weight aerodynamics and efficiency. New spokes and hubs give the Cosmic SL 40 a light and lively feel for climbing and accelerating.

Accelerate and climb faster hold higher speeds

40mm NACA inspired rim shape minimizes drag for added speed
Reduced inertia of the lightweight rim delivers instant acceleration
Flat double butted spokes saves weight and improves responsiveness

Versatile performance for all road riding conditions

Minimal drag low inertia and high lateral stiffness makes it fast and efficient on all types of terrain from the flats to mountain climbs
iTgMAX brake track offers the best braking efficiency and highest reliability of all carbon rims

Improved UST Road delivering speed comfort and control

No tubes means less friction improved efficiency and grip with reduced risk of punctures
Rim bed shape makes it easier to mount and change tyres

Weight: 1600g

Understanding the different Mavic freehub body acronyms:

HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
MS - Shimano Microspline
XD - SRAM XD
XD-R - SRAM XD-R
ED11 - Campagnolo 9/12x
N3W - Campagnolo 13x

ADDITIONAL INFORMATION

The rim is engineered with a NACA rim profile thats 40mm deep and 26mm wide designed specifically for all-rounder performance on flat or hilly terrain. The rim bed shape makes it easier than ever to fit tubeless and tube-type tyres.

Riding UST Tubeless means no tube so no friction and more air volume means a smoother ride. The result is a faster ride with super low rolling resistance. Refined spokes make this wheelset 80g lighter than its predecessor the Cosmic Pro Carbon UST. Combined with our all-new Infinity hub platform which makes them feel quick and responsive out of every corner they are stiffer and more efficient.

The Cosmic SL 40 is engineered specifically for rim brakes. Mavics proven iTgMax technology features a patented laser treatment of the brake track that shortens stopping distance in both dry and wet conditions while a special lay-up and heat treatment process makes it the strongest and most durable of all carbon rims for rim brakes.

These wheels are designed engineered and patented by Mavic in Annecy France and are 100% handmade in their European carbon factory.

Technologies

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction while a wide array of end caps makes it super versatile.

Isopulse lacing design

Optimum energy transfer. The spokes are laced radially on the drive side and crossed 2 on the non drive side to maximise drive side dish thus providing a better spoke tension balance between left and right flanges.

UST tubeless technology

Traction and control. The UST concept improves traction control and comfort whilst reducing inertia and flats

iTgMAX carbon clincher technology

Integral Glass Transition Temperature. Consists in an inner rim bed finished with multiple layers of seamless carbon fibre to achieve a unique one-piece rim contour without cutting any fibres. The brake track is finished with a laser machine to ensure the best braking efficiency.

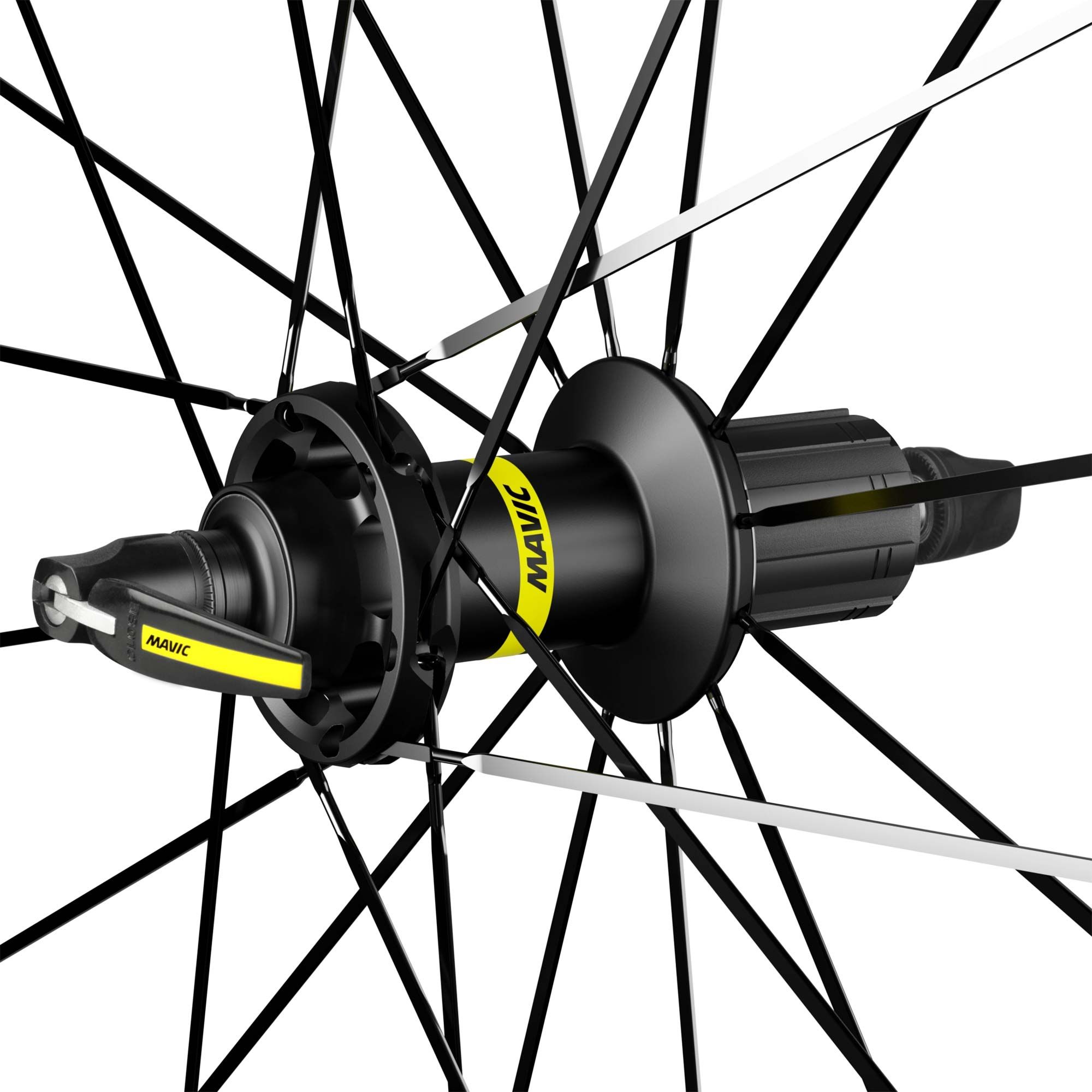

Infinity Hub Design

An ultra reliable high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear.

QRM Auto bearing preload technology

Qualite de Roulements Mavic Auto. Cartridge bearings are double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

Profile depth: 40mm
Inner width: 19mm
Front axle: 9x100mm Quick Release
Rear axle: 9x130mm Quick Release
Discipline: Road
Spokes: Steel Straight flat
Rim Diameter: 700c
Nipples: Steel ABS black
Rim material: 100% carbon fibre
Tyre compatibility: UST Tubeless Ready
Maximum weight: 120kg including bike
Bearings: QRM automatic setting - sealed cartridge
ETRTO Size: 622x19TC
Weight: 1600g

Whats in the box?

Wheelset
User guide
Quick release level 2
x2 Carbon brake pads
Rim tape mounted on wheel
UST valve not mounted on wheel
Multifunction adjustment wrench with rear wheel

Intended Use

Minimum tyre size: width 23mm - pressure max. 6.75Bar/97PSI
Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
ASTM category 1: road only
