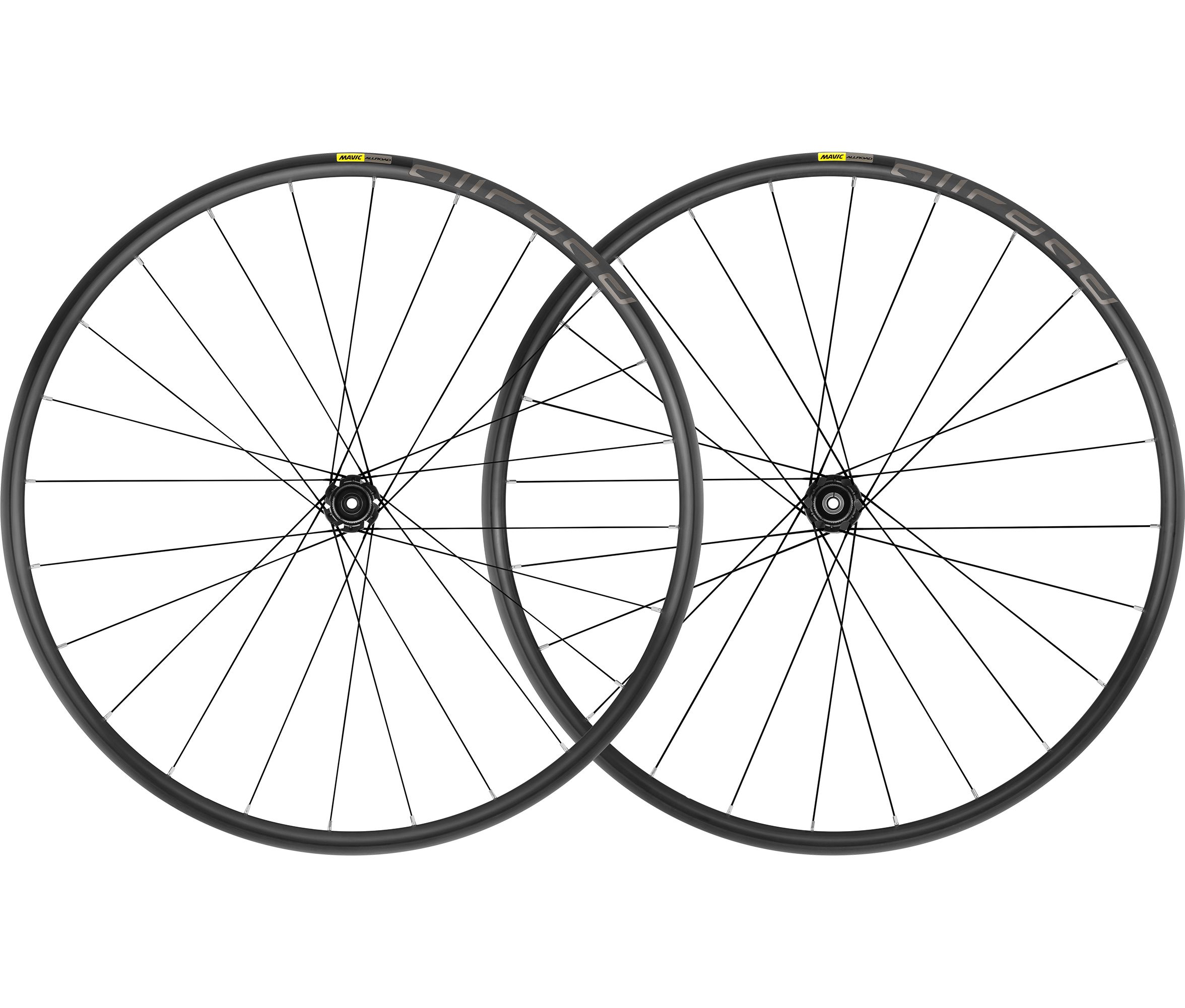

With a wide 22mm rim profile thats optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.
Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.
The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, youre ready to keep things rolling.
Key benefits
Purpose-built for riding rough roads, gravel or dirt.
22mm wide rim takes tire up to 62mm. UST Road Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures. Compatible with all standard retention systems.
Proven performance and reliability at an attainable cost.
High-quality QRM cartridge bearings. Disc-brake-specific, sleeved-style rim technology. Straight-pull round spokes, which are stronger than J-bend spokes.
Rolling efficiency and a nimble ride quality.
Sleeve joint rim minimizes weight. Consistent and stable spoke lacing. Low-friction hubs.
Rims
Tire: UST Tubeless and tubetype
Material: S6000 Aluminum
Valve hole diameter: 65 mm
Disc brake specific profile
Joint: sleeved
Internal width: 23 mm
Height: 22 mm
ETRTO size: 622x23TC
Spokes
Shape: straight pull, round
Count: 24 front and rear
Lacing: front and rear crossed 2
Material: steel
Nipples: steel, ABS

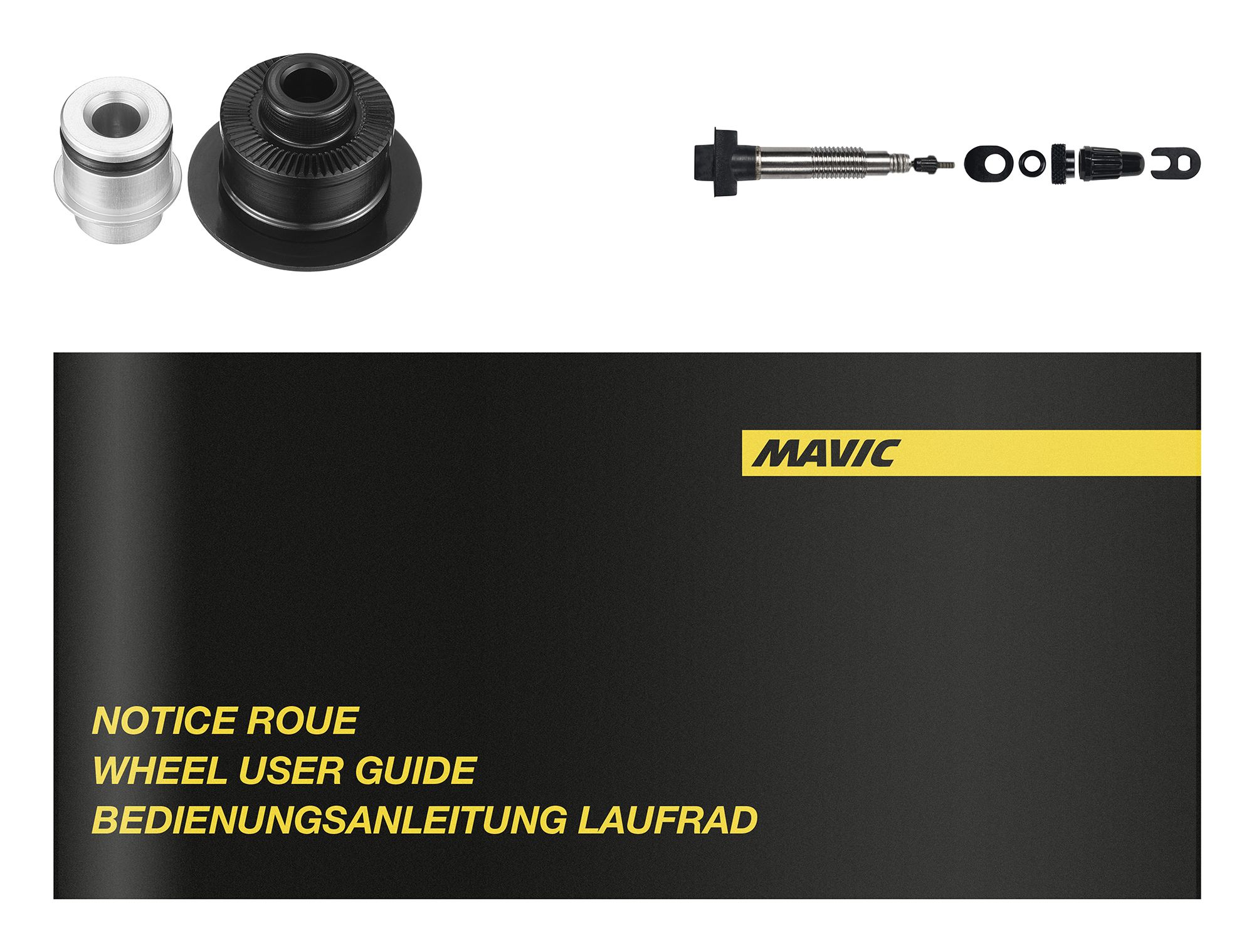

Delivered with
User guide
UST valve and accessories
Front QR adapters
Pre-installed tubeless rim tape
Rear QR adapters for Instant Drive 360
Intended use
Recommended tire sizes: 28 to 64 mm (11 to 25)
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnt exceed 120kg, bike included
Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
Minimum and maximum allowed tyre width: see indication on wheel
Maximum tyre pressure: 55bar/80PSI with a 28mm tyre - 325bar/47PSI with a 64mm tyre

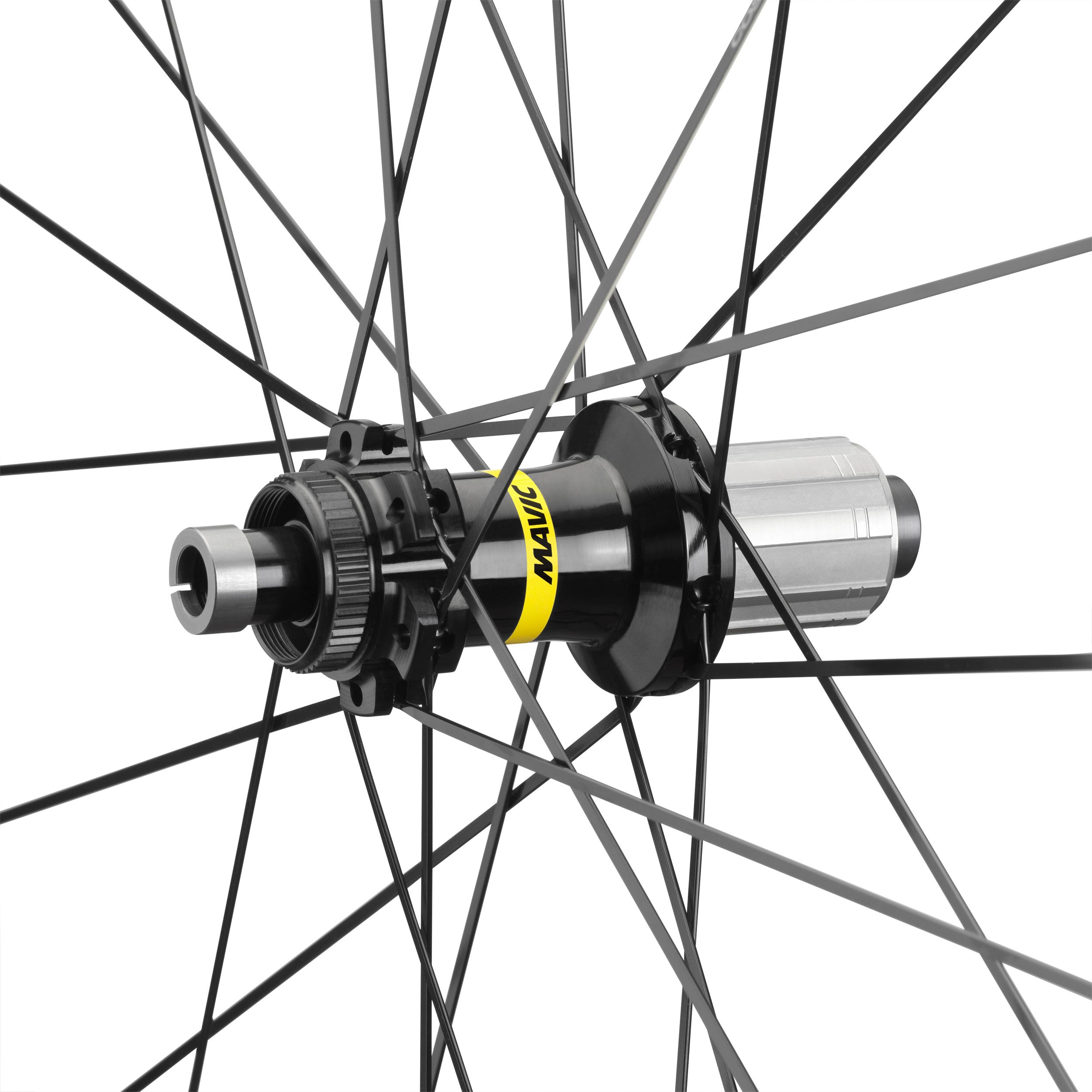

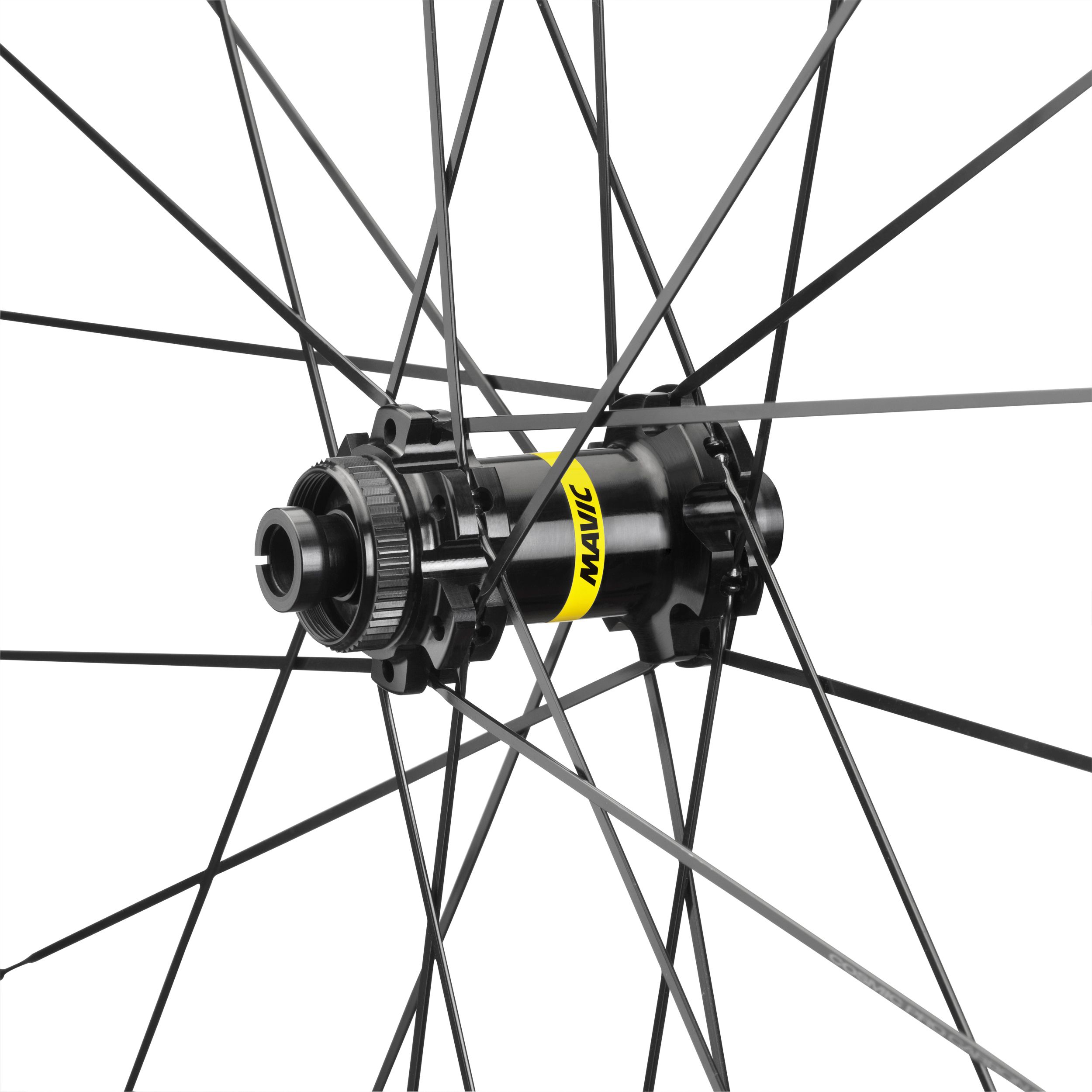

Hubs
Axle material: aluminum
Front and rear bodies: aluminum
Instant Drive 360 freewheel technology
Rear: Quick Release, 12x142 and 12x135 compatible
Front: Quick release, 12x100 and 15x100 through axle compatible
QRM Auto bearing preload technology
Compatibility
Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
Front axle: 12mm thru axle, easily convertible to quick release with optional adapters Convertible to 15mm with complete axle replacement
Versions
Color: Black only
Disc standard : 6 Bolts or Center Lock®
Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release (V2680301)
15mm axle (V2373501)
12x142 rear axle adapters (V2510701 - Delivered with the wheel)
12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
ID360 Shimano / Sram Light freewheel body (V3850101)
ID360 Campagnolo freewheel body (V3440101)
ID360 XD-R freewheel body (V2580101)
ID360 Shimano / Sram freewheel body (V3430101)
12x135 rear axle adapters (V2510901)
ID360 N3W freewheel body (V4270101)
Information on specified weight
The weight of the wheels is announced at +/-5%, in XD/XD-R and Center Lock version, without quick release, nor valve, nor rim tape
