| Motor |

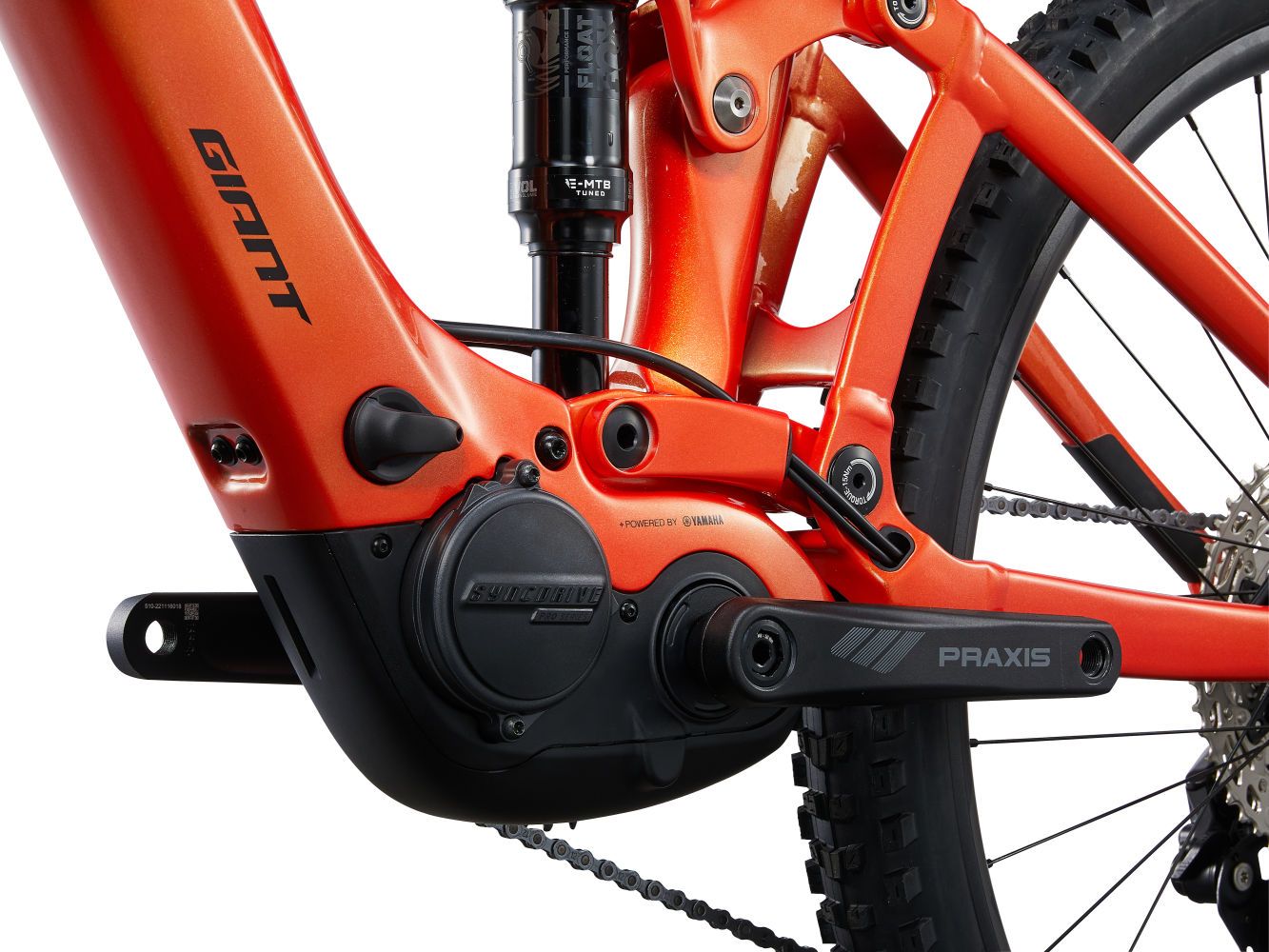

Giant SyncDrive Pro2 Magnesium 85Nm PedalPlus 6-Sensor technology
|
| Controller |
Giant RideControl Ergo3 grip integrated remote |
| Display |
Giant RideControl GO frame integrated LED console Optional wireless ANT+ display |
| Battery |
Giant EnergyPak 400Wh Aluminium casing with highest safety standard (EN50604) CO2 Neutral production Giant EnergyPak Plus 200 range extender compatible |
| Charger |
Giant EnergyPak 4A smart charger 60% in 1:45 |
| Connectivity |
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes |
S M L XL |
| Colours |
Gloss Helios Orange |
| Frame |
Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork |

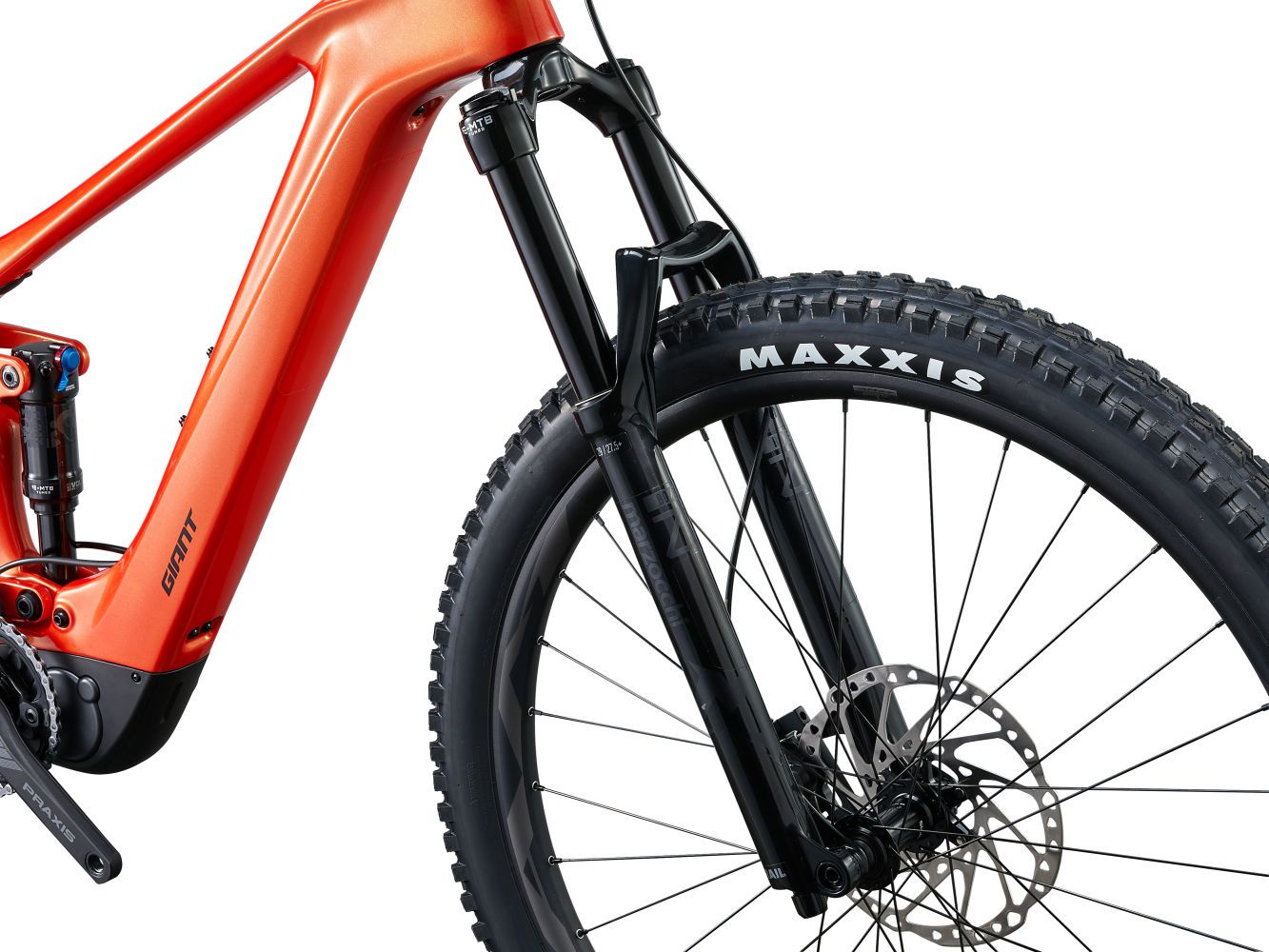

Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
|
| Shock |

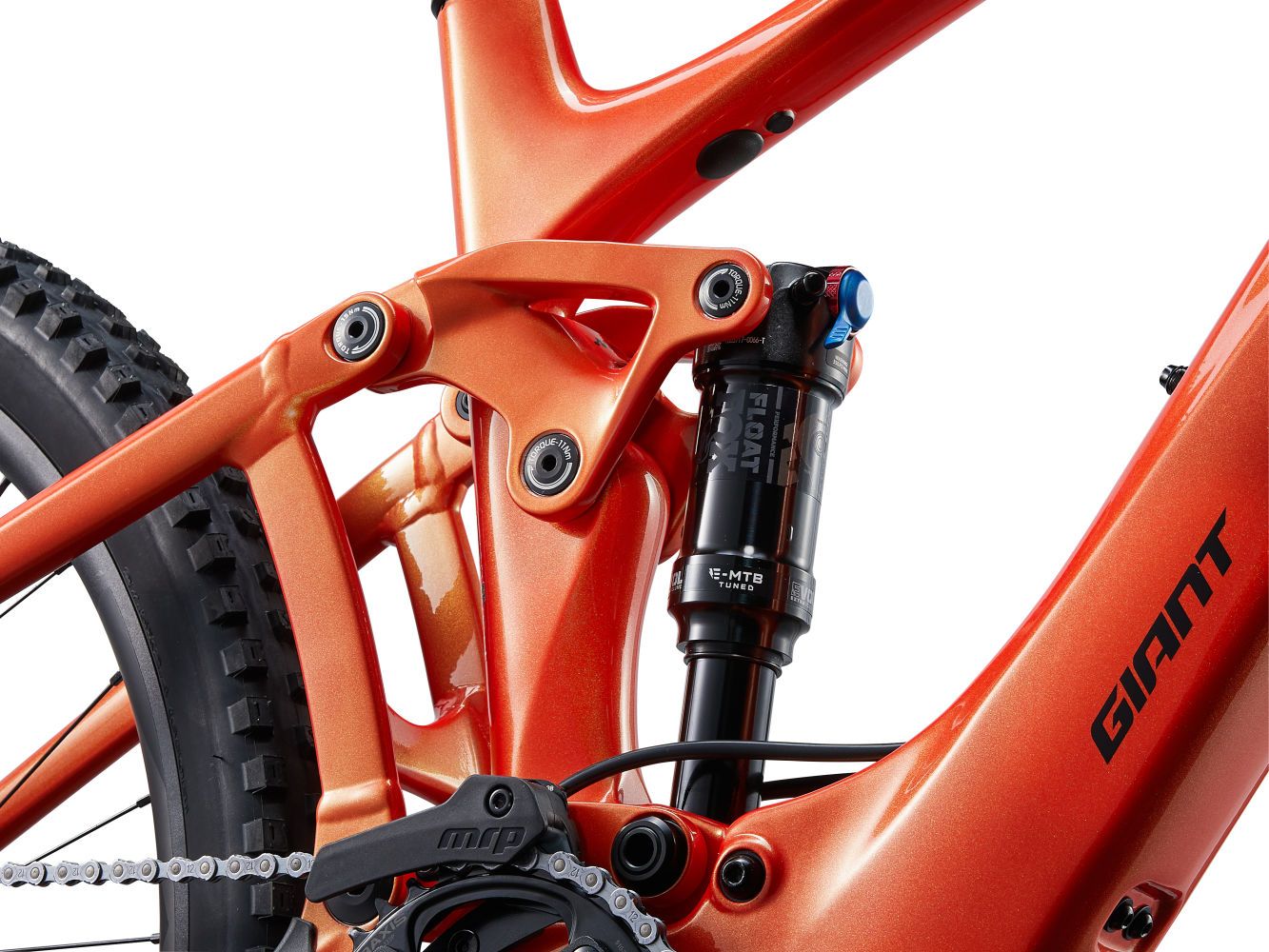

Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar |
Giant Contact SL 35 Trail 35x780mm |
| Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem |
Giant Contact SL 35 |
| Seatpost |
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
|
| Saddle |
Giant Romero Neutral |
| Pedals |
NOT SUPPLIED |
| Shifters |
Shimano Deore 1x12 |
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Rear Derailleur |
Shimano Deore |
| Brakes |
Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
|
| Brake Levers |
Shimano Deore, I-spec EV |
| Cassette |
Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170) |
| Bottom Bracket |
N/A |
| Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29 [F] / 27.5 [R]
|
| Hubs |
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
|
| Spokes |
Sapim E-Lite [R] Race [F] e-bike optimised
|
| Tyres |
Maxxis Minion DHF 29X2.50 Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4 Foldable, TLR, EXO [R] |
| Extras |
Tubeless kit (liquid valves levers manual tool) Inner tube supplied |
| Lighting |
**Optional**:- Giant Recon series e-bike lights available and direct connectable |
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight but in reality weight can vary based on size finish hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
