Giant Revolt 0 Gravel Bike  2025  Save to Pinterest
Product ID: 89201_

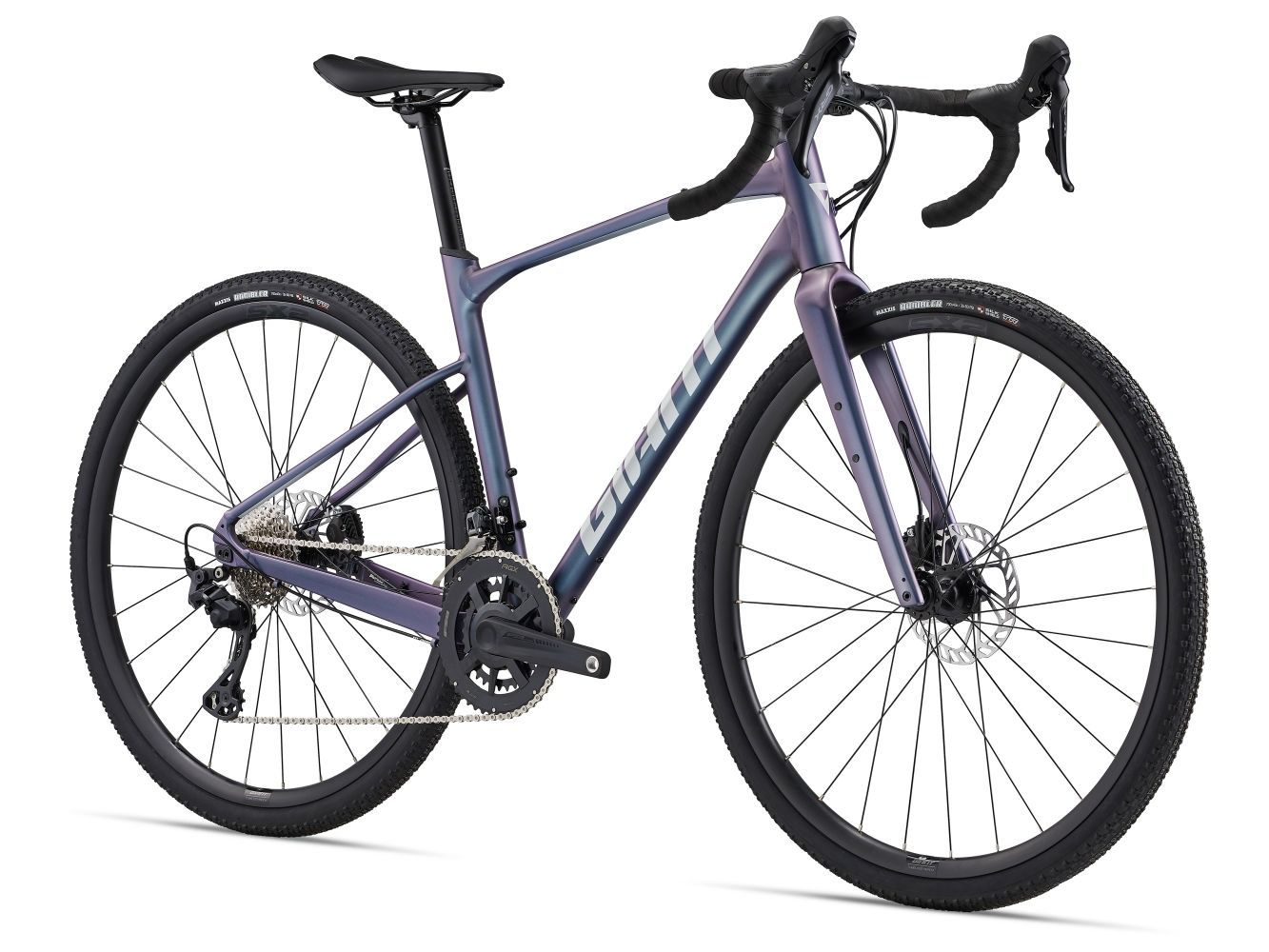

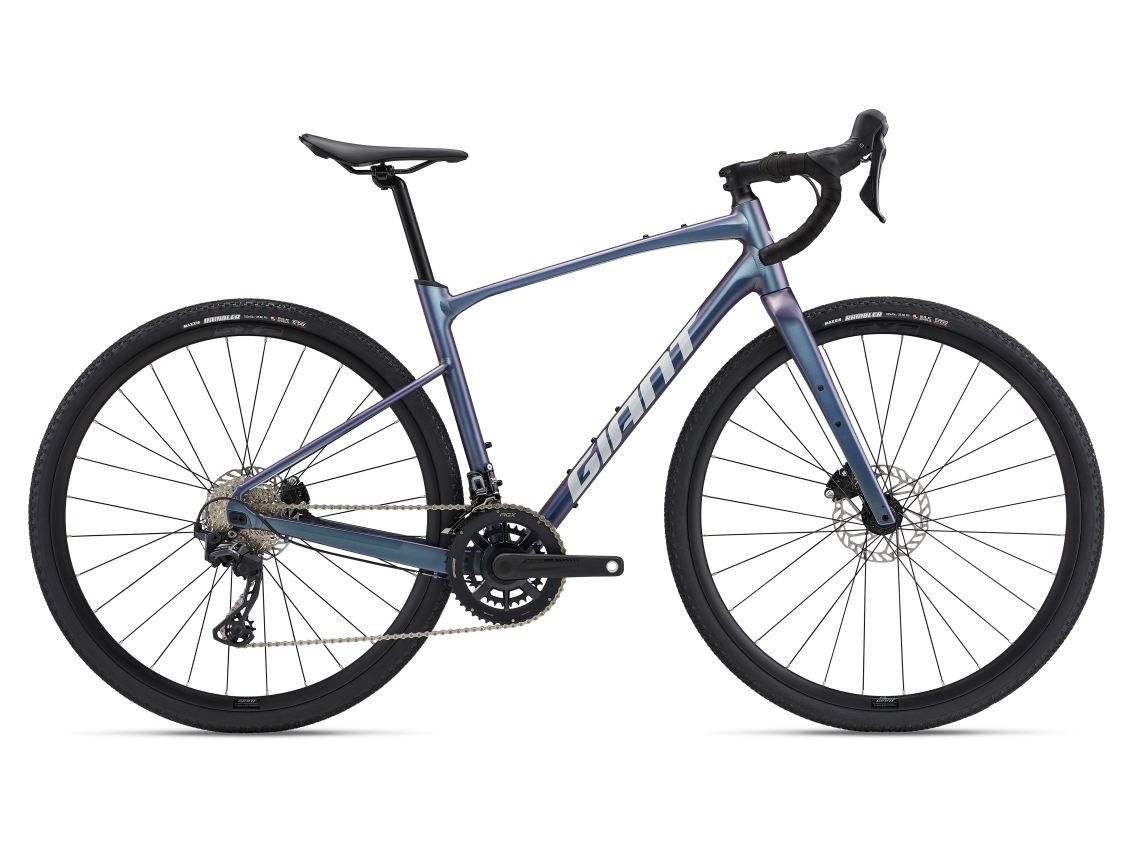

Giant Revolt 0 Gravel Bike
NOW:  CHF1,801.80
(inc. VAT)
RRP: CHF2,002.00 Save 10%!


RIDE ROADS GRAVEL OR DIRT WITH THIS VERSATILE ALUMINUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.

Option
Quantity
Pre-order now - Available 11 July 2025
FREE Delivery to UK Mainland
Returns 365 day returns Wishlist Add to Wishlist
Seen it cheaper? Price Match*

RIDE ROADS GRAVEL OR DIRT WITH THIS VERSATILE ALUMINUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance.

Sizes

S, M, M/L, L, XL

Colours

Gloss Blue Dragonfly

Frame

ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock

N/A

Handlebar

Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

cork tape with gel

Stem

Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Giant D-Fuse, alloy, 14mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano GRX RX-610, 2x12

Front Derailleur

Shimano GRX RX-820

Rear Derailleur

Shimano GRX RX-820

Brakes

Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Shimano GRX RX-610 hydraulic

Cassette

Shimano 105, 11x34

Chain

KMC X12L-1

Crankset

FSA Omega Modular AGX+, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

FSA Mega EXO

Rims

Giant S-X2 Disc wheelset, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Stainless steel

Tyres

Maxxis Rambler, 700x40c, tubeless

Extras

Factory tubeless set up, 53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
