Sizes
|
XS and S: MX only M: 29 F&R out of the box, MX compatible
|
|
Colours
|
Raw Carbon/Chrome
|
|

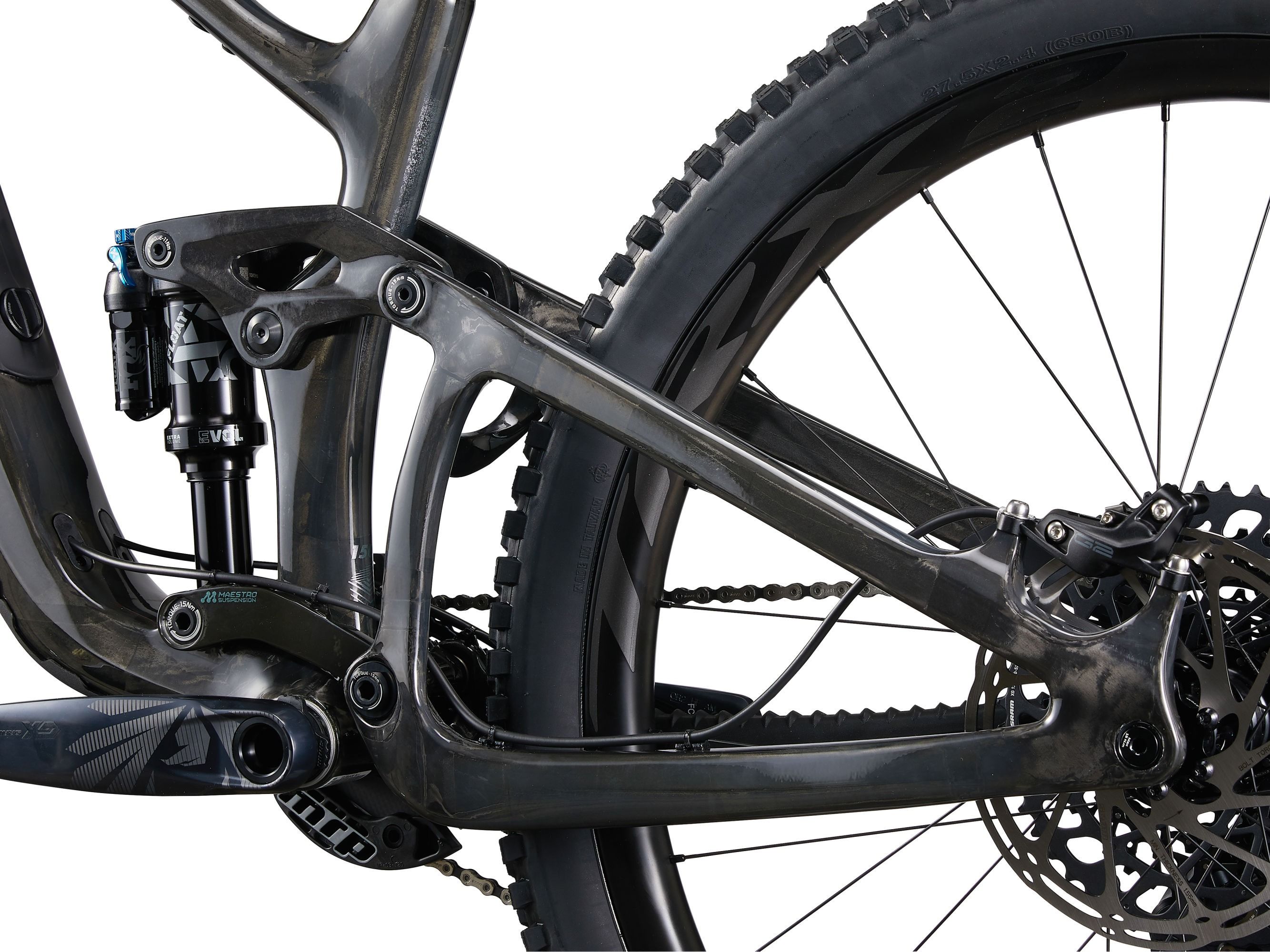

Frame
|
Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage
|
|

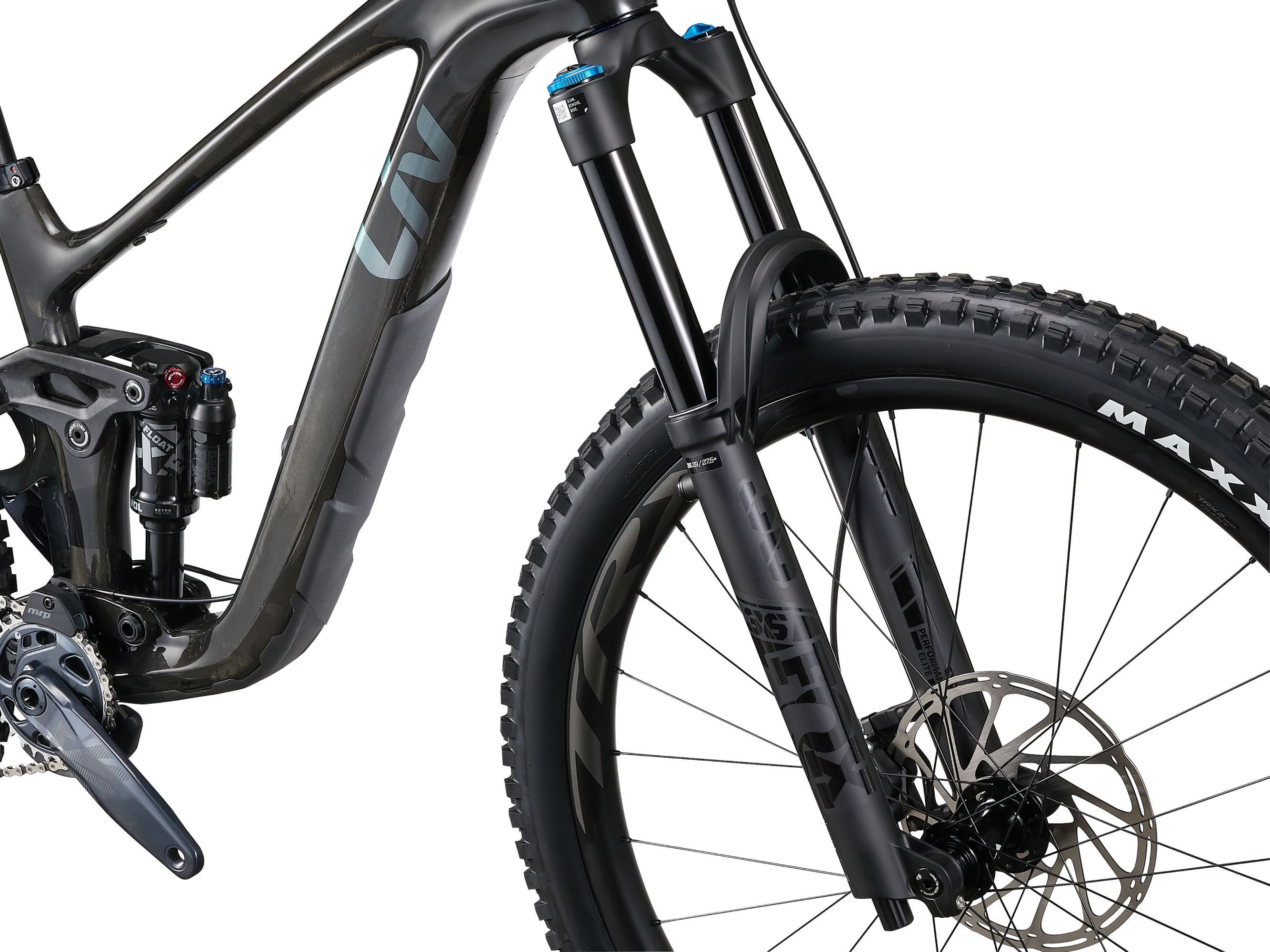

Fork
|
Fox 36 Performance Elite, 160mm, Grip damper, Boost, 15x110, Kabolt, tapered, 44mm offset
|
|

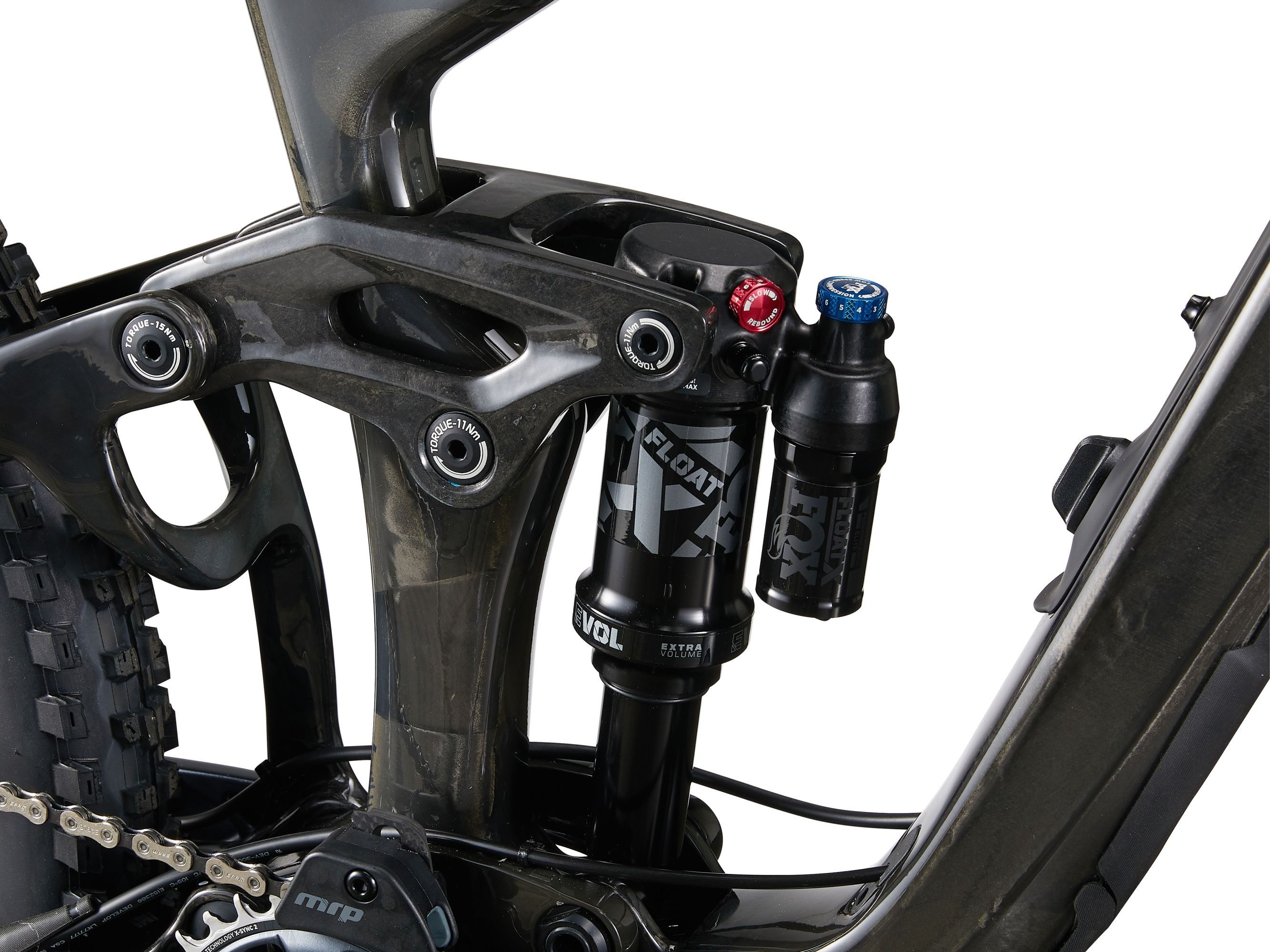

Shock
|
Fox Float X Performance Elite 185x55, custom tuned for Liv
|
|

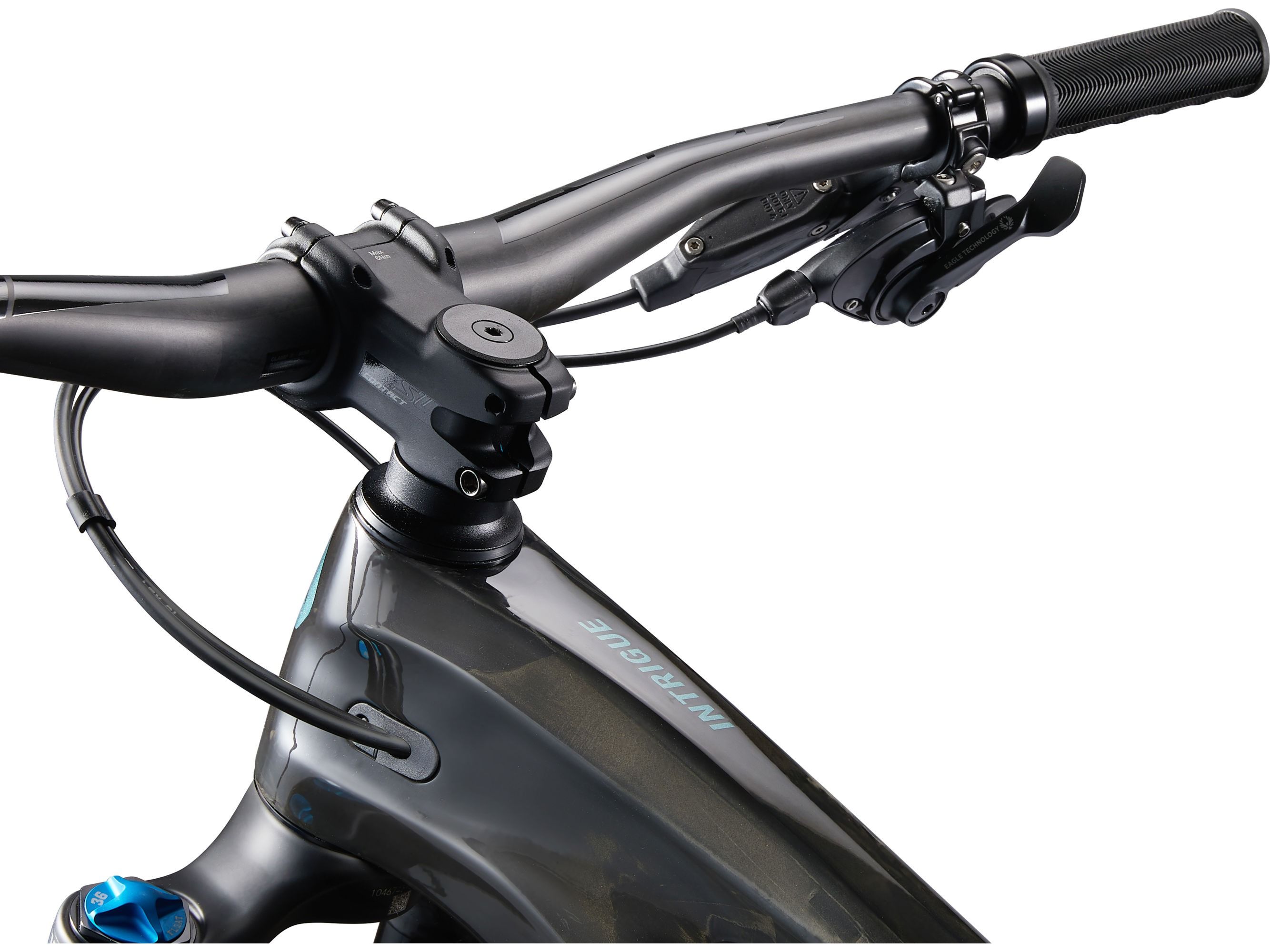

Handlebar
|
Giant Contact SLR TR35, composite, 35mm, 20mm rise XS: 760mm, S: 760mm, M: 760mm
|
|
Grips
|
Liv Tactal Pro Single Lock-On XS and S: 110mm, M: 120mm
|
|
Stem
|
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm
|
|
Seatpost
|
TranzX travel-adjustable dropper, remote XS: 120-150mm travel / 30.9 x 459mm S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm
|
|
Saddle
|
Liv Sylvia
|
|
Pedals
|
platform
|
|
Shifters
|
SRAM GX Eagle, 1x12
|
|
Front Derailleur
|
N/A
|
|

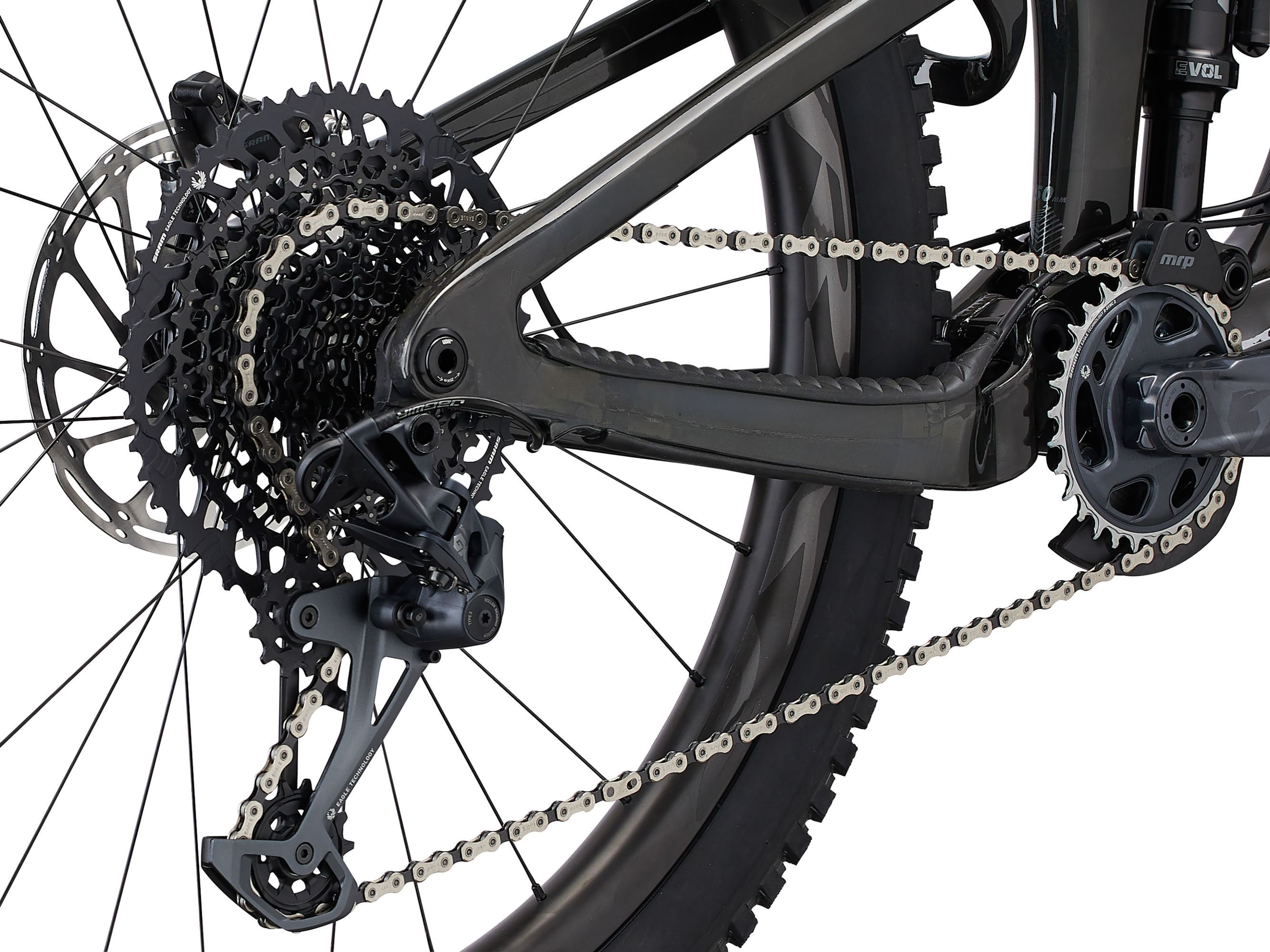

Rear Derailleur
|
SRAM GX Eagle
|
|
Brakes
|
SRAM G2 RSC, hydraulic, SRAM CenterLine rotors [F]200mm, [R]180mm
|
|
Brake Levers
|
SRAM G2 RSC
|
|
Cassette
|
SRAM GX Eagle, 10x52
|
|
Chain
|
SRAM GX
|
|
Crankset
|
SRAM GX, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant TRX 2 29 WheelSystem, composite, 30mm inner width XS and S: [F] 29, [R] 27.5 M: [F] 29, [R] 29
|
|
Hubs
|
[F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
|
|
Spokes
|
Sapim
|
|
Tyres
|
[Size XS, S and M, Front] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Size XS and S, Rear] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [Size M Rear] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
|
|
Extras
|

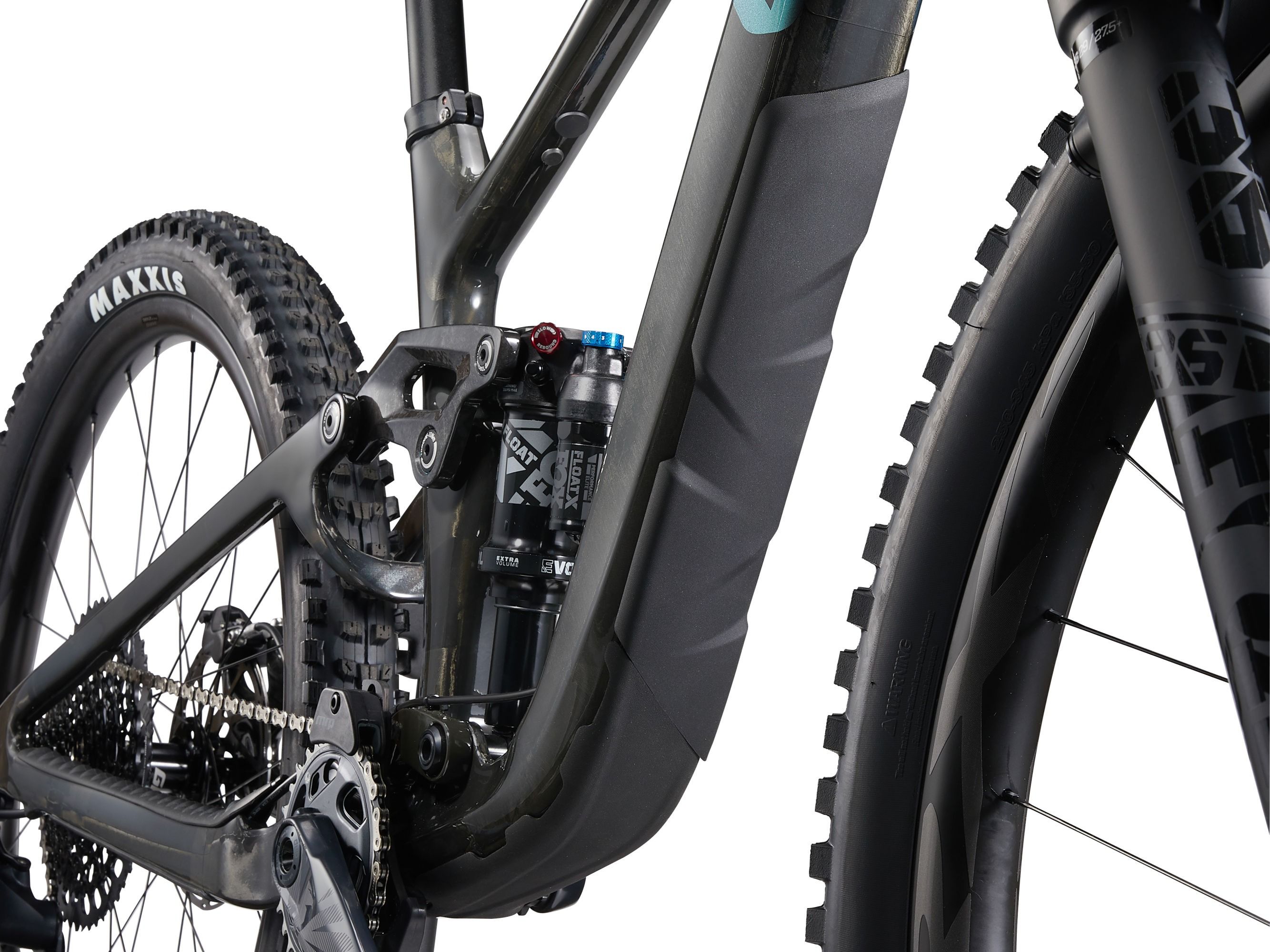

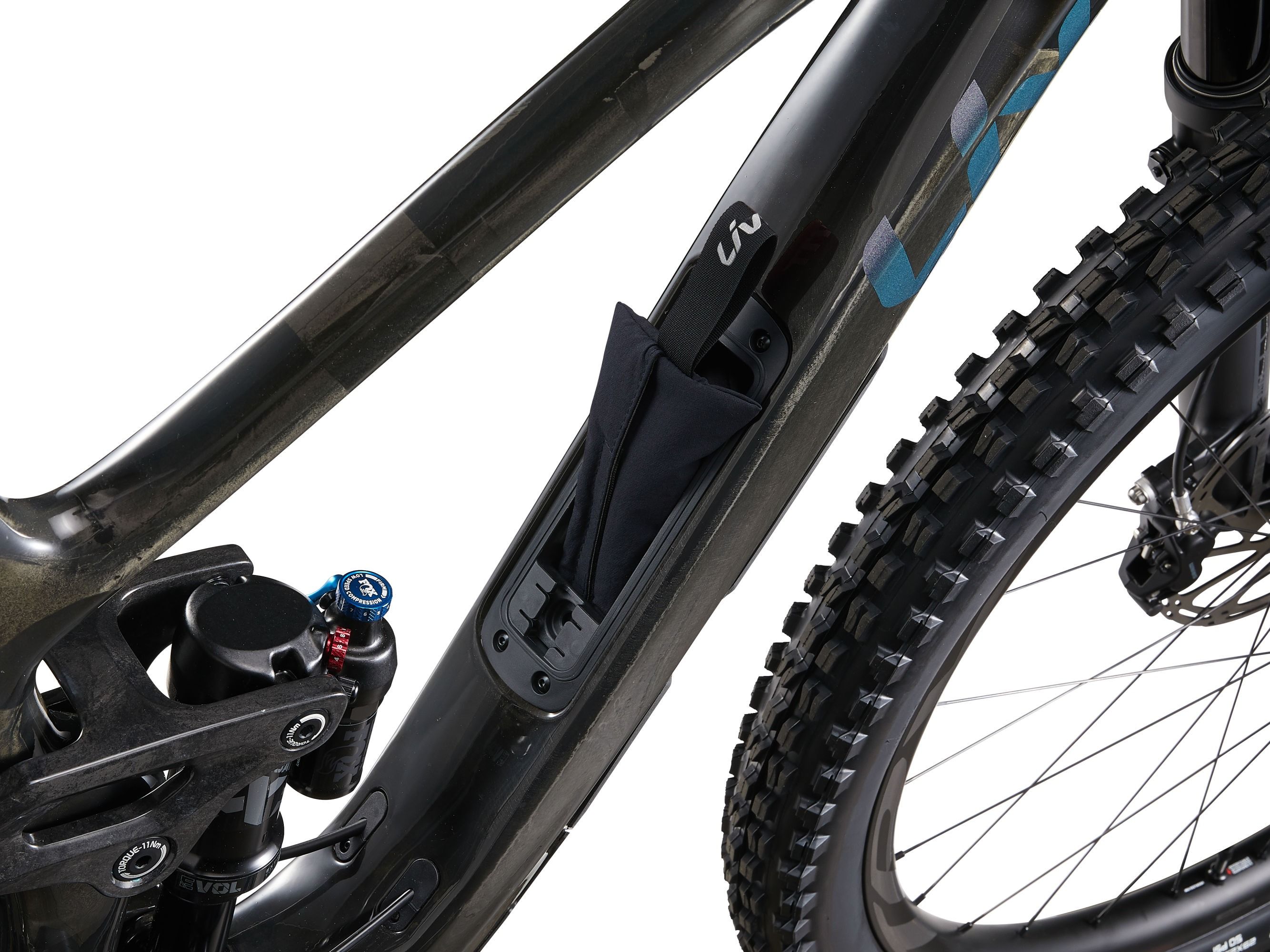

MRP AMg V2 chainguide, 3M tailgate protector, factory tubeless set up, integrated down tube storage bag
|
|
Max Tyre Clearance
|
2.5
|
|
Max Chainring Size
|
32t
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
