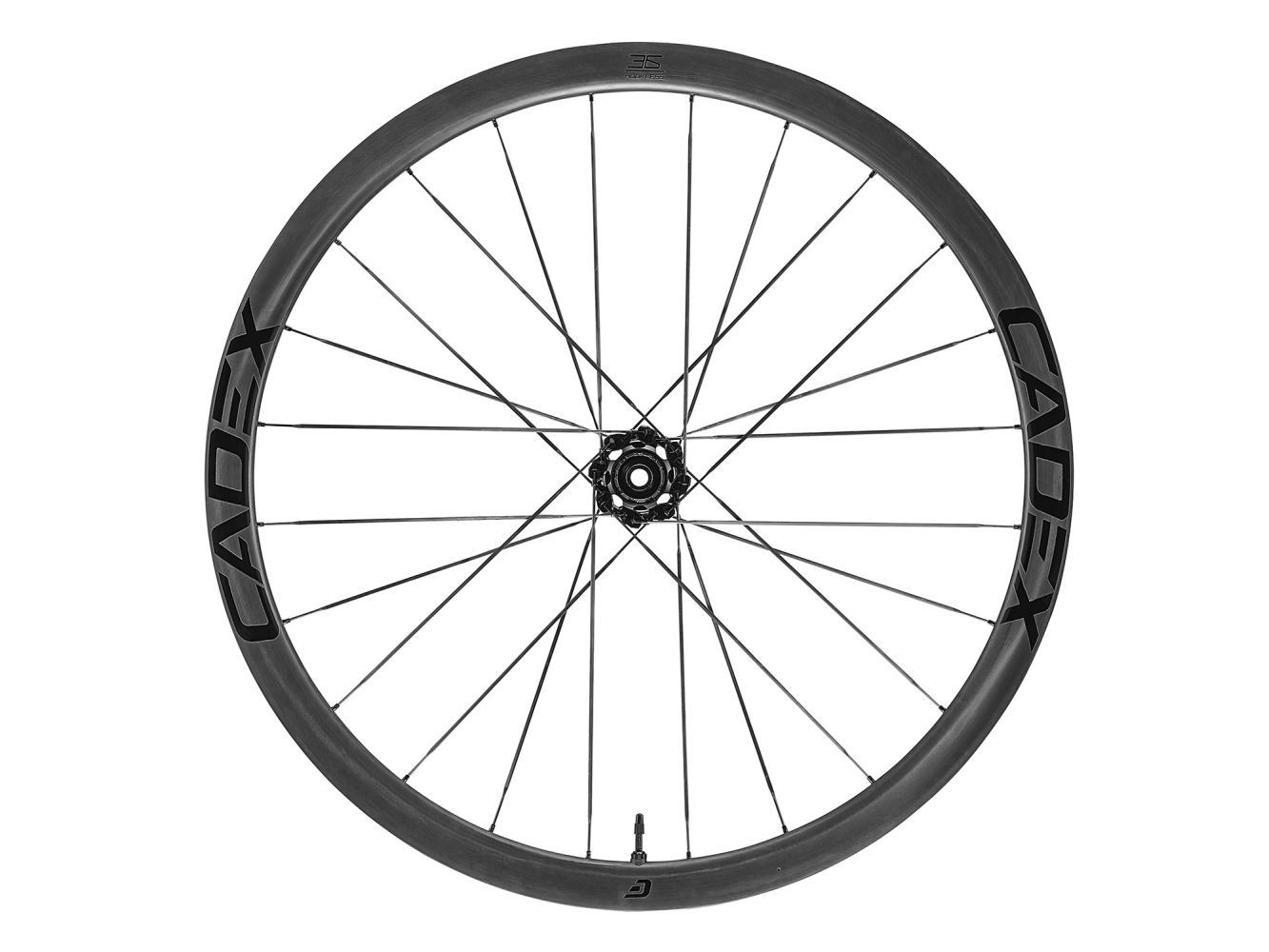

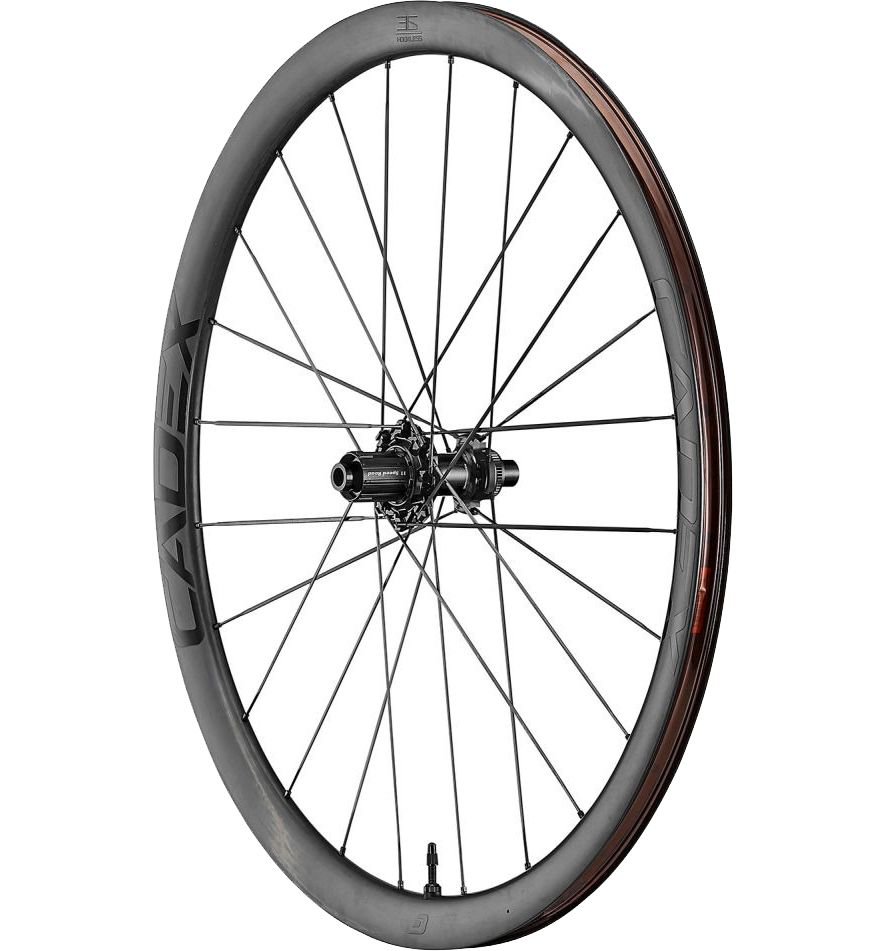

The CADEX 36 Disc WheelSystem is a versatile lightweight carbon wheel built for real-world performance. Featuring a hookless rim design with optimal 22.4mm internal width and 36mm depth it delivers unbeatable acceleration and climbing efficiency as well as confident handling on descents in the wind and on varied terrain.
TECHNOLOGIES
Custom-Tuned DBL Technology
Dynamic Balanced Lacing ensures spokes are set for optimal tension when under dynamic pedalling force versus when static resulting in superior transmission stiffness and efficiency.
Low-Friction Hub
Precision machined internals eliminate excessive bearing load reduce bearing friction and minimise rolling resistance.
Aero Carbon Spokes
High tensile-strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing and feature a purpose designed aero shape offering excellent aerodynamic characteristics as well as superior stability in shifting winds all at the lightest weight possible.
CADEX Ceramic Bearings
Durable ultra-hard ceramic bearings further increase hub rolling efficiency with lower rolling resistance and 1.5x smoother action than steel bearings.
Hookless Rim Design
Provides the best flow transition from the tyre to the sidewall of the rim resulting in reduced aerodynamic loss when compared to standard hook bead rims and featuring a continuous carbon fibre structure enhancing overall durability.
Precision Reinforced Lay-Up
High-tensile strength carbon fibre and high Tg resin is reinforced at the most crucial points for industry-leading stiffness ride compliance and strength with no unnecessary weight.
FEATURES
Precision reinforced lay-up places carbon fibre only where needed creating a strong stiff rim structure weighting in at only 1302 grams.
Dynamic Balanced Lacing technology produces a stiffer more efficient wheel with outstanding power transfer.
High tensile strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing.
The 22.4mm inner rim width creates an increased actual tyre contact patch for better traction and impact absorption better handling more confidence and less rider fatigue
CADEX hookless rim technology features a broad inner rim width and durable continuous carbon fibre structure helping create a rounder tyre shape for superior grip and handling plus added sidewall support when cornering all without compromising weight
The precision machined low-friction R1-C30 hub significantly reduces bearing load as CADEX ceramic bearings further increase efficiency by offering lower rolling resistance and 1.5x smoother action than steel
A low 36mm rim profile offers excellent stability in shifting winds
SPECIFICATIONS
Rim Material
Carbon
Rim Type
Hookless Clincher
Tubeless
CADEX Tubeless System (rim tape and valve kit included)
Suggested Tyre Size
700 x 25C – 700 x 32C
Rim Height
36mm
Rim Outer Width
26mm
Rim Inner Width
22.4mm
ETRTO
622-22
Front Hub
CADEX R1-C30 Hub Centerlock
Rear Hub
CADEX R1-C30 Hub Ratchet Driver Centerlock
Hub Compatibility
Shimano 11 / SRAM XDR 12 / Campagnolo
Bearing
CADEX Ceramic Bearings
Front Axle
100x12 Thru Axle
Rear Axle
142x12 Thru Axle
Spokes (Front)
Aero Carbon Spoke
Lacing (Front)
DBL 21H
Spokes (Rear)
Aero Carbon Spoke
Lacing (Rear)
DBL 24H
Nipple Type
Alloy Internal
Warranty
2 year warranty
Incident Replacement
5 Year (registered original owner only)
Weight (Pair)
1302g
WheelSystem Weight Limit:
285 lbs / 129 kg
